HappyModel Mobula7 O4 DJI HD TinyWhoop 2S FPV Drone

$304.00
Save $113

Quantity

Availability: Loading...

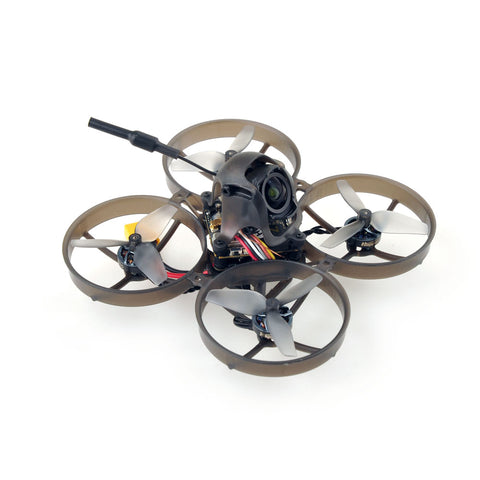

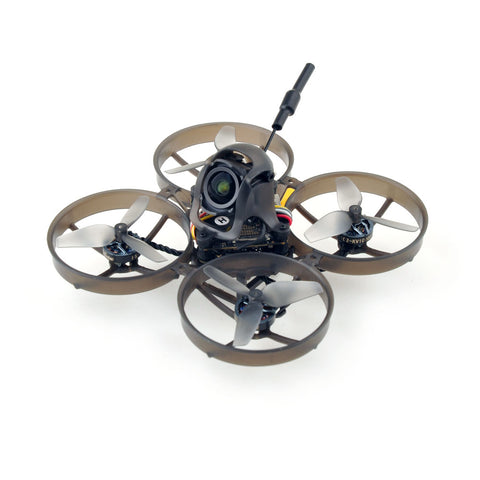

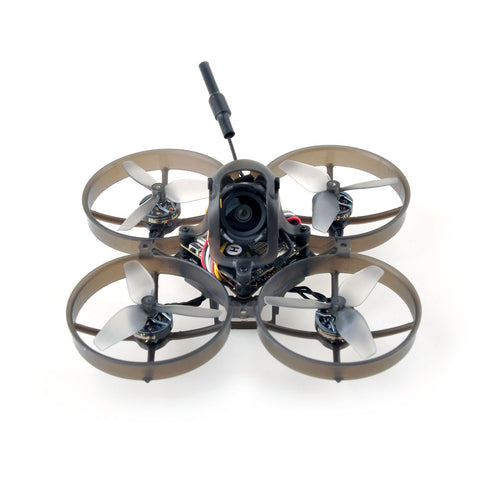

HappyModel Mobula7 O4 DJI HD TinyWhoop 2S FPV Drone (O4 Lite/Wide Version)

The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 lite or wide air unit which would provide excellent and unbelievable FPV footage. And the new Happymodel RS1102 KV10000 motor and HQPROP 45mm propellers ,bring a powerful and smooth flying experience. This would be a good option for indoor and backyard FPV flying.

Features:

Equipment with New DJI O4 Lite or Wide air unit
2S battery support Powerful and Smooth freestyle flying
UART ExpressLRS receiver support stable control link
Lighter and small for indoor FPV

Package includes:

Item Name	Qty
Happymodel M80 Frame	1
CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4	1
RS1102 KV10000 brushless motor	4
HQPROP 45MMX2 bi-blade propellers(4cw+4ccw)	1
DJI O4 Lite or Wide Air unit	1
Canopy	1
Screw driver	1

Spare parts specifications:

Motor	Mode: RS1102 KV10000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ13.5mm14mm Weight(g):2.8g No.of Cells(Lipo):1-2S
Propellers	Weight:0.25g Material: Poly Carbonate Pitch:0.9 Props Dia:45mm Hub Thickness:5mm Shaft:1.5mm

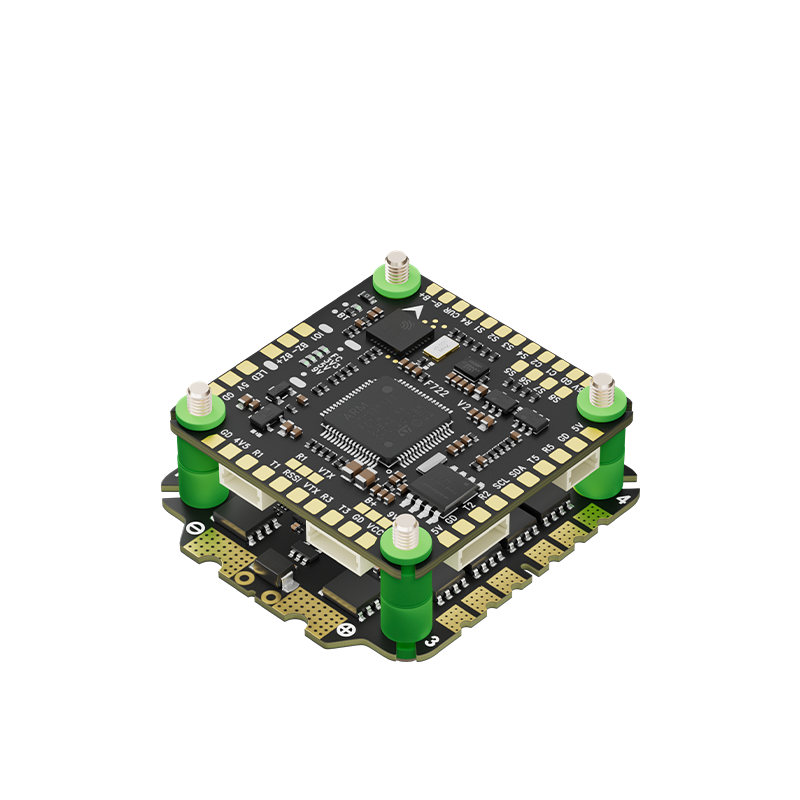

Flight controller	MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC	Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
Onboard UART ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator
DJI O4 or Wide Air Unit	Weight: Air Unit (camera module included): Approx. 8.2 g Transmission Module: 30×30×6 mm (L×W×H) Camera Module: 13.44×12.36×16.50 mm (L×W×H) Camera Cable Length: 50mm Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Operating Frequency: 5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region. Refer to local regulations. Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) 5.8 GHz: <30 dBm (FCC) <14 dBm (CE) <30 dBm (SRRC) Live View Quality: 1080p at 30/50/60/100fps
