1S LiPO Series Charging Board BT2.0 A30 PH2.0 Balance Port XT60 Cable
Features
- Main Application: This board can provide balanced charging for 6 batteries to avoid repeated battery replacement, very practical!
- Time Saving: This time features time saving operation that it can greatly shorten the charging time, provide convenience for you.
- Wide Application: This board is widely used in machinery industry, automobile industry, construction industry, railway, electronic industry, power plant, etc.
- Wide Compatibility: This board can be compatible with most chargers, like for IMAX B8, for UN A6, etc. You can choose it with confidence!
- ABS Material: Using excellent ABS material, this board possesses impact resistance, scratch resistance, environmentally friendly.
Â
Description
battery balance board balance charging adapter board balance charging plate balance charging adapter board Battery Balance Board 1S Series Connection Balance Charging
Specification
- Item Type: Battery Balance Board
- Material: ABS, PCB
- Application: Charging of lithium battery for aircraft model
Package List

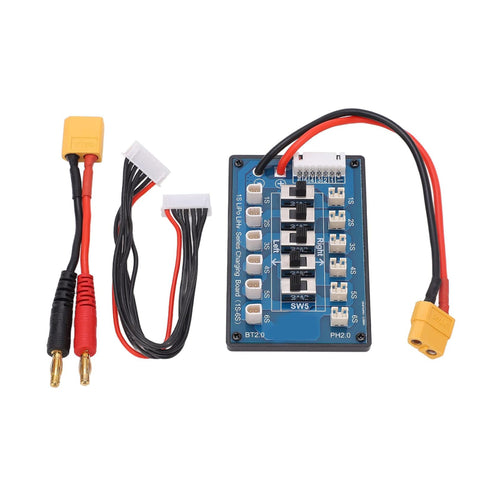

- 1x LiPO Battery Series Balance Charging Board (BT2.0/A30+PH2.0)
- 1x XT60Â Charge Lead with Banana Plugs
- 1x Balance Port CableÂ
Â
User Manual
Current Version with Only 5 Switches
1S: SW1 to Right, other swithes are in random without setting up.
2S: SW1 to Left,SW2 to Right,other swithes are in random without setting up.
3S: SW1 to Left,SW2 to Left, SW3 to Right,other swithes are in random without setting up.
4S: SW1 to Left,SW2 to Left, SW3 to Left,SW4 to Right,other swithes are in random without setting up.
5S: SW1 to Left,SW2 to Left, SW3 to Left,SW4 to Left,SW5 to Right.
6S: SW1 to Left,SW2 to Left,SW3 to Left,SW4 to Left,SW5 to Left.
Older Version with 6 Switches
1S: SW1 to Right, other switches are in random without setting up.
2S: SW1 to Left,SW2 to Right,other swithes are in random without setting up.
3S: SW1 to Left,SW2 to Left, SW3 to Right,other swithes are in random without setting up.
4S: SW1 to Left,SW2 to Left, SW3 to Left,SW4 to Right,other swithes are in random without setting up.
5S: SW1 to Left,SW2 to Left, SW3 to Left,SW4 to Left,SW5 to Right,other swithes are in random without setting up.
6S: SW1 to Left,SW2 to Left,SW3 to Left,SW4 to Left,SW5 to Left,SW6 to Right.
