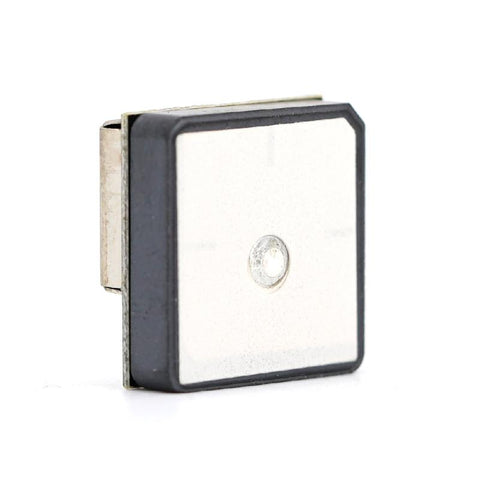

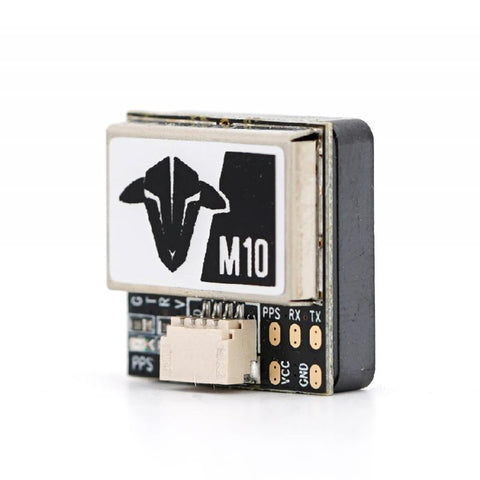

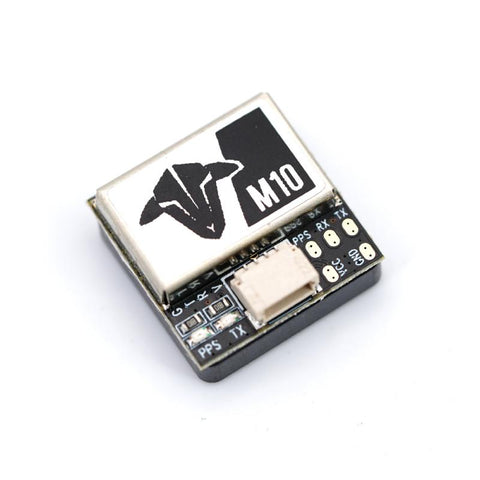

TBS M10Q GPS GLONASS

Quantity

Featured Products

SUNLU PETG 3D Printer Filament 1.75mm 1KG

RadioMaster TX16S Mark II Max Radio Controller Transmitter

RadioMaster Bandit Nano ExpressLRS 915MHz RF ELRS 1W Module TX

ISDT K2 Air Dual Channel Smart Charger 2-6S AC DC 200w 500w 20A

SUNLU ASA 3D Printer Filament 1.75mm 1KG

iFlight XING2 2306 FPV Motor Unibell 4-6S 1755KV

Chipset - ublox UBX-M10050
Flash memory for saving configuration.
Frequency - L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ
Baud Rate - 4800bps-921600bps, default 115200bps
Channel - N/a
Sensitivity - (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start - 148dBm)
Cold start - Average 26 seconds
Warm start - Average 24 seconds
Hot start - Average 1 second
Accuracy - (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
Maximum height - 50000m
Maximum speed - 500 m/s
Maximum acceleration - ≦ 4G
Refresh Rate - 0.25Hz-18Hz, default 1Hz
Size - 25 x 25 x 7.7mm
Weight - 13.5g
Input Voltage - 5V
Magnetometer: QMC5883
